NVG-S Multifunctional Night Vision Monocular
Onick NVG-S is portable and multifunctional night vision monocular with high resolution,small in size,light in weight .Magnification can be changed by replacing different objective lens, 1x and 3x are available.
€0
Product Details
Product Details

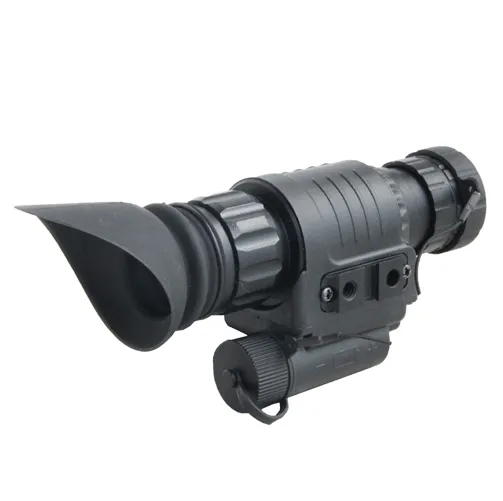

Onick NVG-S is portable and multifunctional night vision monocular with high resolution,small in size,light in weight .Magnification can be changed by replacing different objective lens, 1x and 3x are available.It can be equipped with digital camera, video recorder,CCD video camera and use super Gen 2+ and 3 Russian sophisticated Image Intensifier Tube with Anti-glare,function and built-in IR Illuminator,It can be widely used for military observation,sea defence,frontier reconnaissance,surveillance, suppress smuggling,drugs and traffickers seizure,security check ect,and also can be used in other low light condition.
KEY FEATURES
1.High magnification
2.Long range viewing
3.Fully multi-coated optics
4.Superior resolution
5.Durable rubber armor
6.Built-in infrared illuminator
7.Reliable and easy to use
IIT
2+
Observation distance, m
175~200
Magnification
1
Angular field of view, degree
402
Focus range, m
0.25-
Diopter Adjustment
5
Resolution, lp/mm min- max
57-72
Supply voltage, V (2 universal “AA” batteries)
3
Active performance period without IR illumination, min, hours
80
Active performance period with IR illumination, min, hours
40
Output pupil diameter, mm
20
Output pupil relief, mm
25
Monocular weight (with 1 battery), no more, g
320
Mask weight, no more, g
180
Bag weight, g
250
Ambient conditions
♦Operating Temperature Range, С
40
♦Relative Humidity
at С 98%
♦Shock resistance
5g
♦Water resistance
2.0 м (2 hours)
♦Dimensions
118x48x69 mm
♦Operating mode switch and batteries compartment cover are easy to use even when operating in gloves.
♦Angle of IR illumination totally assures a field of view (controlled under assembling).
♦Monoculars are performed as corrosion-proof.
♦Low battery indicator.
♦«IR-on» indicator.
♦Possible mounting on a right/left side.

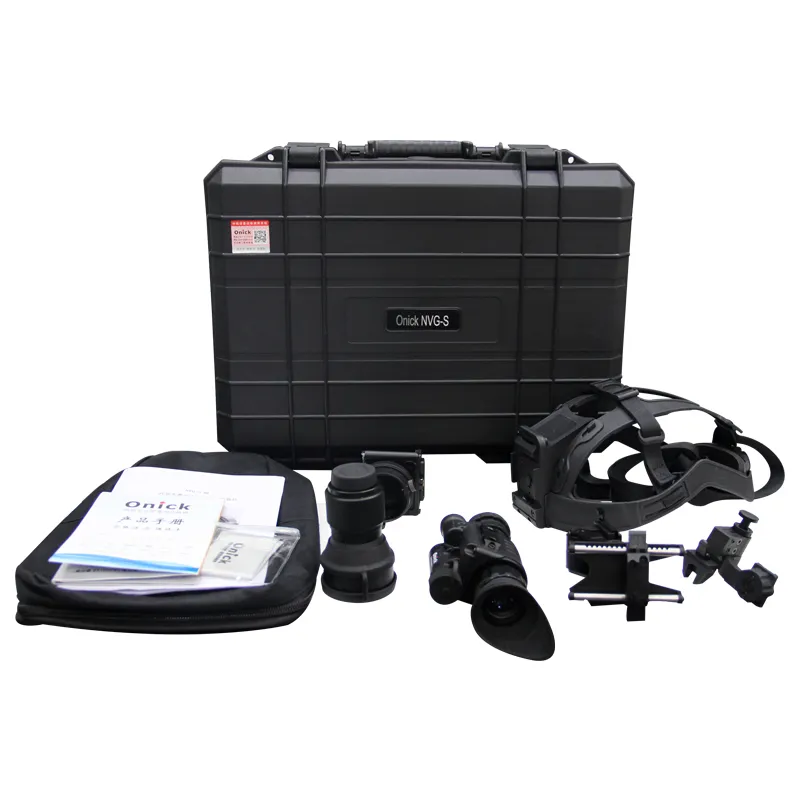

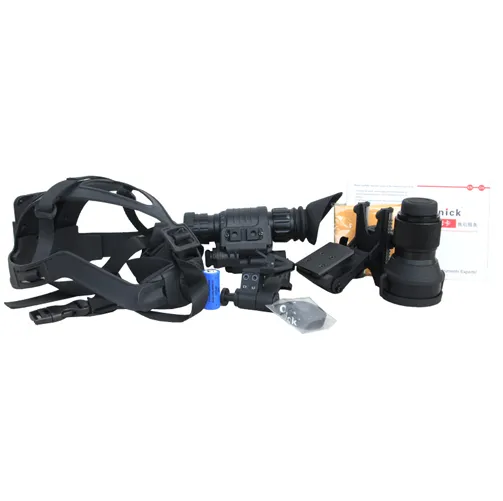

Standard set
1.Night Vision Monocular
2.Head strap mount
3.Allows hands-free operation. High safety of mounting blocks and adjusting mechanisms.
4.Carrying Case
5.Shoulder strap
